External Wall Build Up

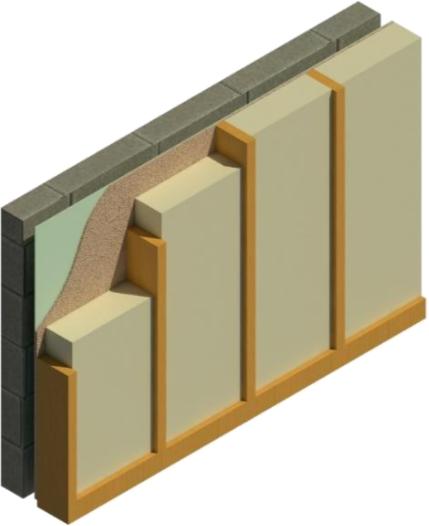

Standard Timber Frame
- Breather Membrane
- 9mm OSB3 Sheathing
- 140×38 treated timber studs
- Factory Fitted Insulation

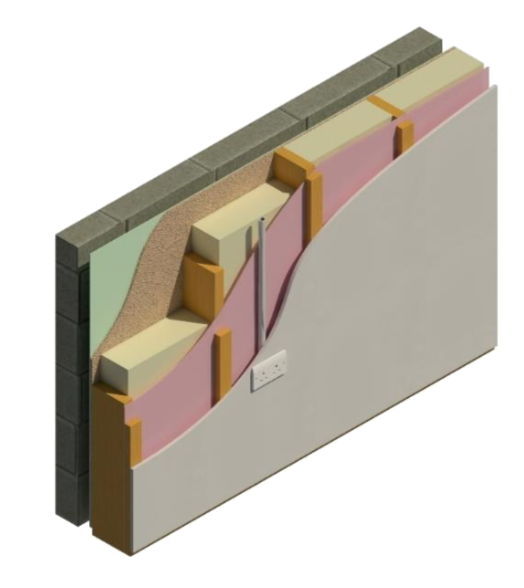

Modular Timber frame
- Breather Membrane
- 9mm OSB3 Sheathing
- 140×38 treated timber studs
- Factory Fitted Insulation
- Factory Fitted Airtightness Membrane
- Factory Fitted Service batten
- Factory Fitted Internal board (Plasterboard)
- Factory Fitted Socket/switch cut outs with 25mm conduit

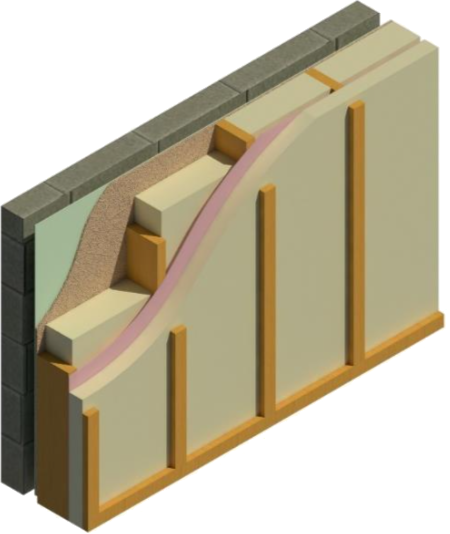

Hybrid Timber Frame
- Breather Membrane
- 9mm OSB3 Sheathing
- 140×38 treated timber studs
- Factory Fitted Insulation
- Factory Fitted Airtightness Membrane
- Factory Fitted Service batten
-
Additional external wall insulation upgrade to as low as 0.12 available on Hybrid and Modular systems
-
Modular timber frame system internal fire resistance upgrade to 60mins available on request
-
Additional fire mitigation measures available on request
Internal Wall Build Up

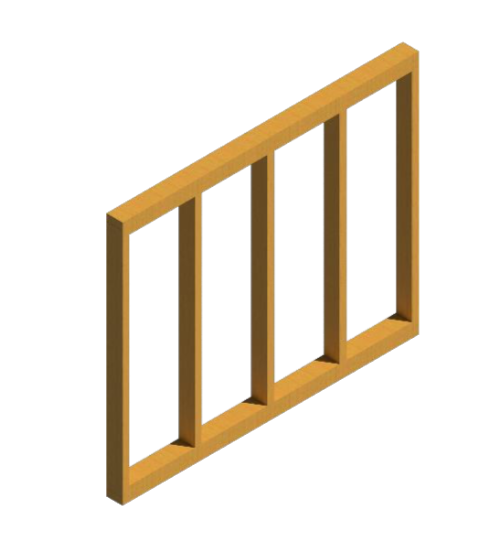

Standard Timber Frame
- 89×38 timber studs

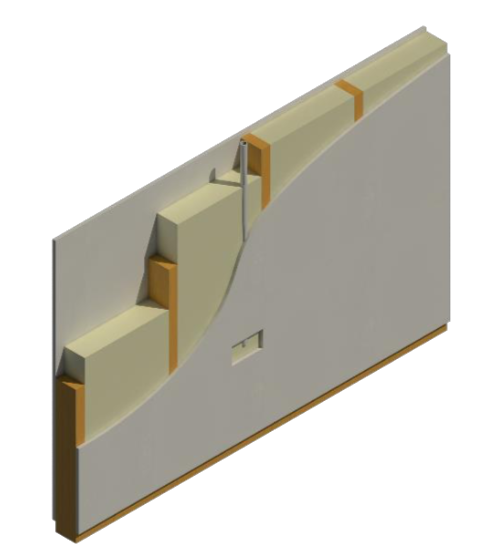

Modular Timber frame
- Factory Fitted Internal board (Plasterboard)
- 89×38 timber studs
- Factory Fitted Insulation
- Factory Fitted Internal board (Plasterboard)
- Socket/switch cut outs with 25mm conduit
Hybrid Timber Frame
- 89×38 timber studs

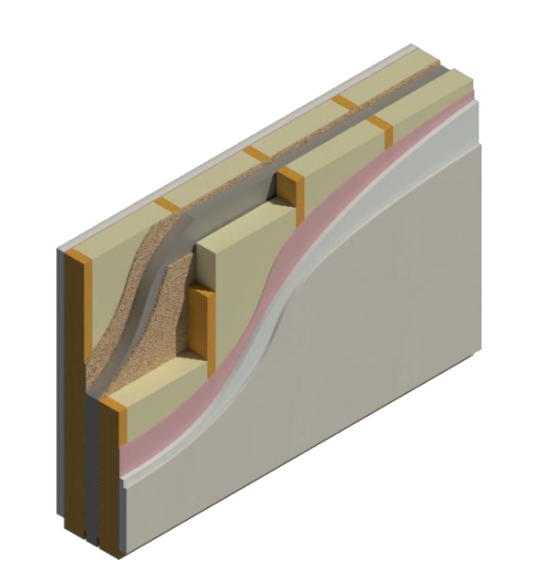

Party Wall Build Up
Standard Timber Frame
- 9mm OSB3 Sheathing
- 89×38 treated timber studs
- Factory Fitted Insulation
- Factory Fitted Airtightness Membrane
- Factory Fitted 15mm Plain Plasterboard
- Factory Fitted 15mm Fireline Plasterboard
Modular Timber frame
- 9mm OSB3 Sheathing
- 89×38 treated timber studs
- Factory Fitted Insulation
- Factory Fitted Airtightness Membrane
- Factory Fitted 15mm Plain Plasterboard
- Factory Fitted 15mm Fireline Plasterboard
Hybrid Timber Frame
- 9mm OSB3 Sheathing
- 89×38 treated timber studs
- Factory Fitted Insulation
- Factory Fitted Airtightness Membrane
- Factory Fitted 15mm Plain Plasterboard
- Factory Fitted 15mm Fireline Plasterboard
